ProtaStructure 2025 Enhanced Codes & Standards: The New RC Design for Seismic and Non-Seismic Applications
This blog post explores the key features of ProtaStructure 2025 Enhanced Codes & Standards. We highlight why it’s the top choice for structural engineers globally.
ProtaStructure 2025 Enhanced Codes & Standards for RC Design
ProtaStructure 2025 integrates ductile and non-ductile design principles across various international codes. It ensures rigorous compliance with seismic provisions. Capacity checks and irregularity assessments are automated, simplifying the design process.
Seismic and Non-Seismic Provisions: Engineers can easily apply design principles for different seismic zones. The software ensures compliance with strict regulations.
Global Code Support: Localized versions of ACI318 and other national codes are available, making ProtaStructure 2025 Enhanced Codes & Standards ideal for international projects.

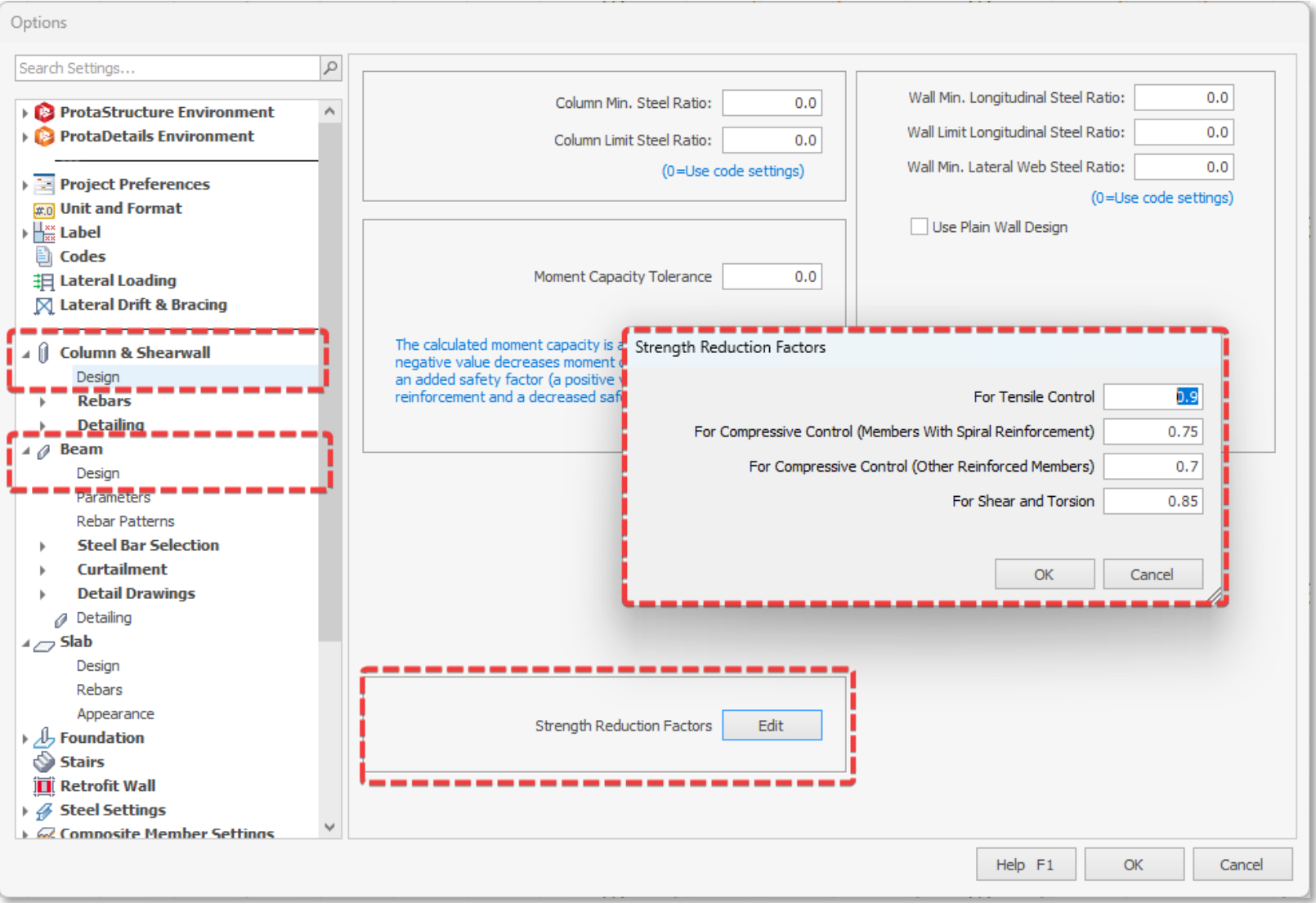

User-Defined Strength Reduction Factors
ProtaStructure 2025 offers customizable strength reduction factors to ensure ACI318 compliance. This feature is critical for adapting the code to local requirements.
Customized Compliance: Engineers can adjust designs to meet specific national versions of ACI318.
Accessible Design Parameters: The settings menu provides easy access to user-defined parameters, streamlining the design workflow.
This feature enhances ProtaStructure 2025 Enhanced Codes & Standards, empowering engineers to meet global design requirements efficiently and accurately.
Long-Term RC Deflection Checks
ProtaStructure 2025 provides detailed long-term RC deflection checks that follow key international standards, including ACI318-2014, ACI318-2019, NSR10-C, and NSCP2015. These enhancements help engineers ensure their designs comply with serviceability limits across multiple code bases.
Effective Section Inertias
ProtaStructure 2025 Enhanced Codes & Standards calculate effective section inertias based on provided reinforcement and design moments. This calculation ensures the user-defined serviceability conditions are fully met.
Comprehensive Reporting
ProtaStructure 2025 presents long-term deflection calculations in a detailed, tabulated format. Engineers receive full transparency and clear insights into the deflection behavior of RC elements.
By incorporating these checks, ProtaStructure 2025 deliver a more robust solution for ensuring the long-term performance of reinforced concrete structures.
ProtaStructure 2025 elevate steel seismic design by implementing advanced seismic checks based on AISC341 and Turkish codes. This version continues to support Eurocode seismic provisions for steel, further broadening its global relevance.
Special Moment Frames
ProtaStructure 2025 Enhanced Codes & Standards design special moment frames using compact sections. The software flags the design if it fails to meet this requirement, ensuring compliance with seismic standards.
Eccentric Braced Frames
ProtaStructure 2025 now supports seismic link checks for eccentric braced frames. This feature highlights the software’s commitment to providing comprehensive seismic design solutions.
These seismic checks show how ProtaStructure 2025 push the limits of what structural design software can accomplish.

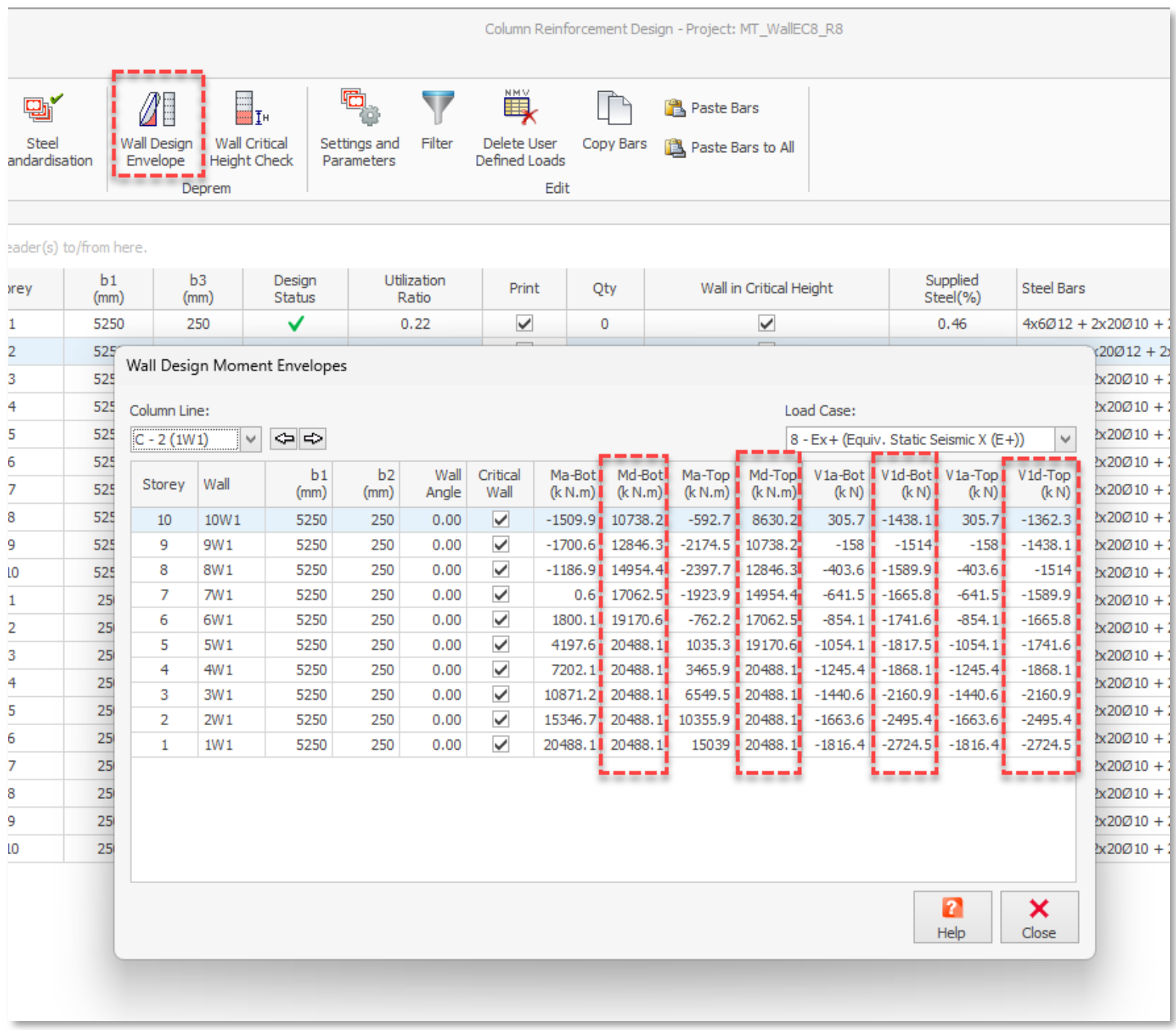

Shearwall and Moment Design Envelopes: Powered by ProtaStructure 2025 Enhanced Codes & Standards
ProtaStructure 2025 significantly improve shearwall design by integrating bending moment and shear force design envelopes, in line with Eurocode 8. These features help engineers ensure shearwalls stay elastic in critical regions, effectively addressing uncertainties in dynamic behavior.
Tension Shift Calculation
ProtaStructure 2025 automates tension shift calculations by applying bending moment and shear force envelopes, ensuring full compliance with Eurocode 8 provisions.
User-Defined Parameters
Engineers can set their own strut inclination angles for tension shift calculations, offering more control over the design process.
Expanded Drift Calculation Capabilities

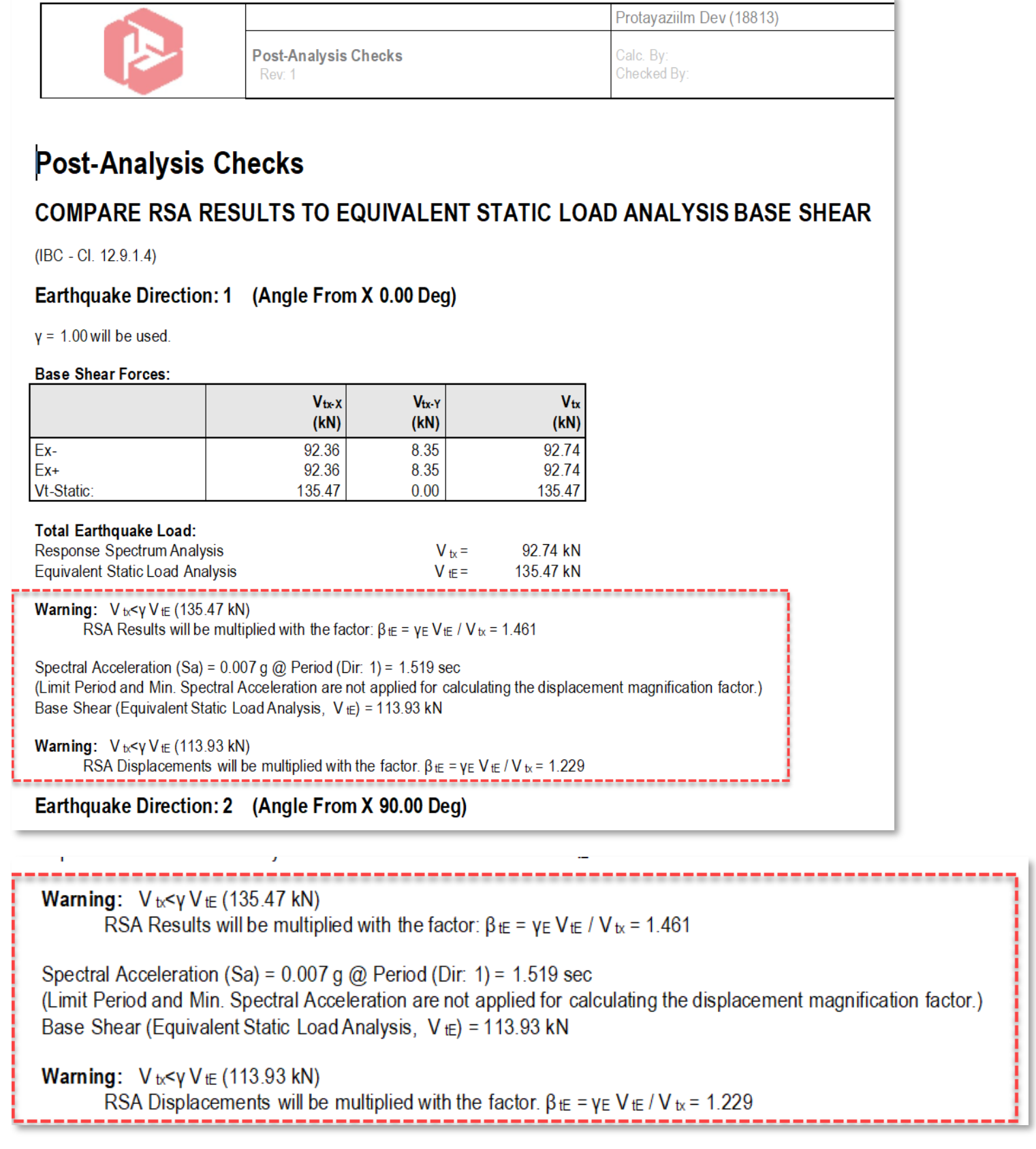

ProtaStructure 2025 Enhanced Codes & Standards also expand on drift calculation capabilities, providing detailed post-analysis checks for response spectrum analysis (RSA) and equivalent static load (EQS) analyses. The software automatically scales forces and displacements based on the specific seismic code requirements, ensuring that drift limitations are appropriately addressed.
Force and Displacement Scaling: The separate scaling factors for force and displacement in ProtaStructure 2025 allow for greater precision in tall building designs, where drift often becomes a critical consideration.
Post-Analysis Reporting: ProtaStructure 2025 offer an extended report detailing RSA-EQS comparisons and the effects of scaling factors on design outcomes.
These enhanced drift calculations underscore the commitment of ProtaStructure 2025 Enhanced Codes & Standards to providing engineers with reliable and transparent tools for seismic design.
