Fin Plate Connection Macro Example Psteel 2022

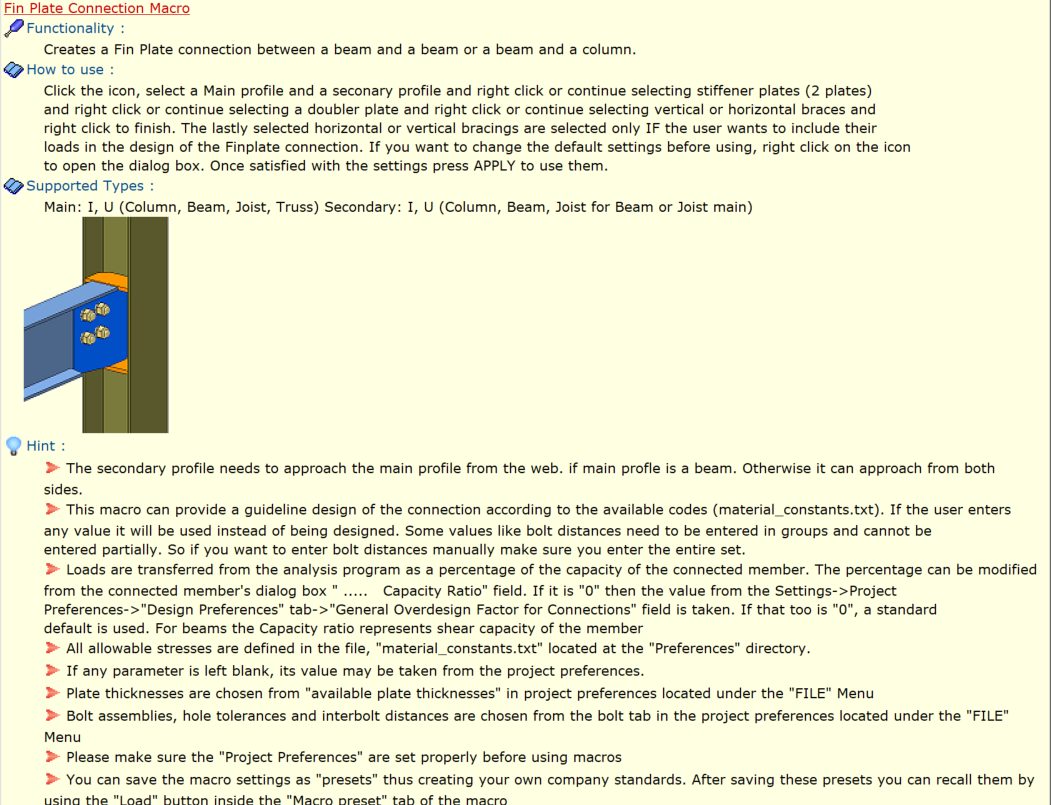

Placing the mouse cursor over the Fin Plate Connection Macro will reveal the tooltip describing the scope and steps of this macro.
Note: Click to enlarge the image

Fin Plate (Beam – Column)

  1. Pick "Fin Plate" connection icon under "Beam to Column Connections" section.
  2. Pick the column.
  3. Pick the beam.
  4. Select stiffener(s) if have and right-click to proceed next step. If there is no stiffener to select, just right-click to proceed next step.
  5. Select doubler plates if have and right-click to proceed next step. If there is no doubler plate to select, just right-click to proceed next step.
  6. Select braces if have and right-click to proceed next step. If there is no doubler plate to select, just right-click to proceed next step.
  7. The connection is created.

Fin Plate (Beam – Beam)

  1. Pick "Fin Plate Connection"
  2. Pick the main beam.
  3. Pick the secondary beam.
  4. Right-click 3 times.
  5. The connection will be created.

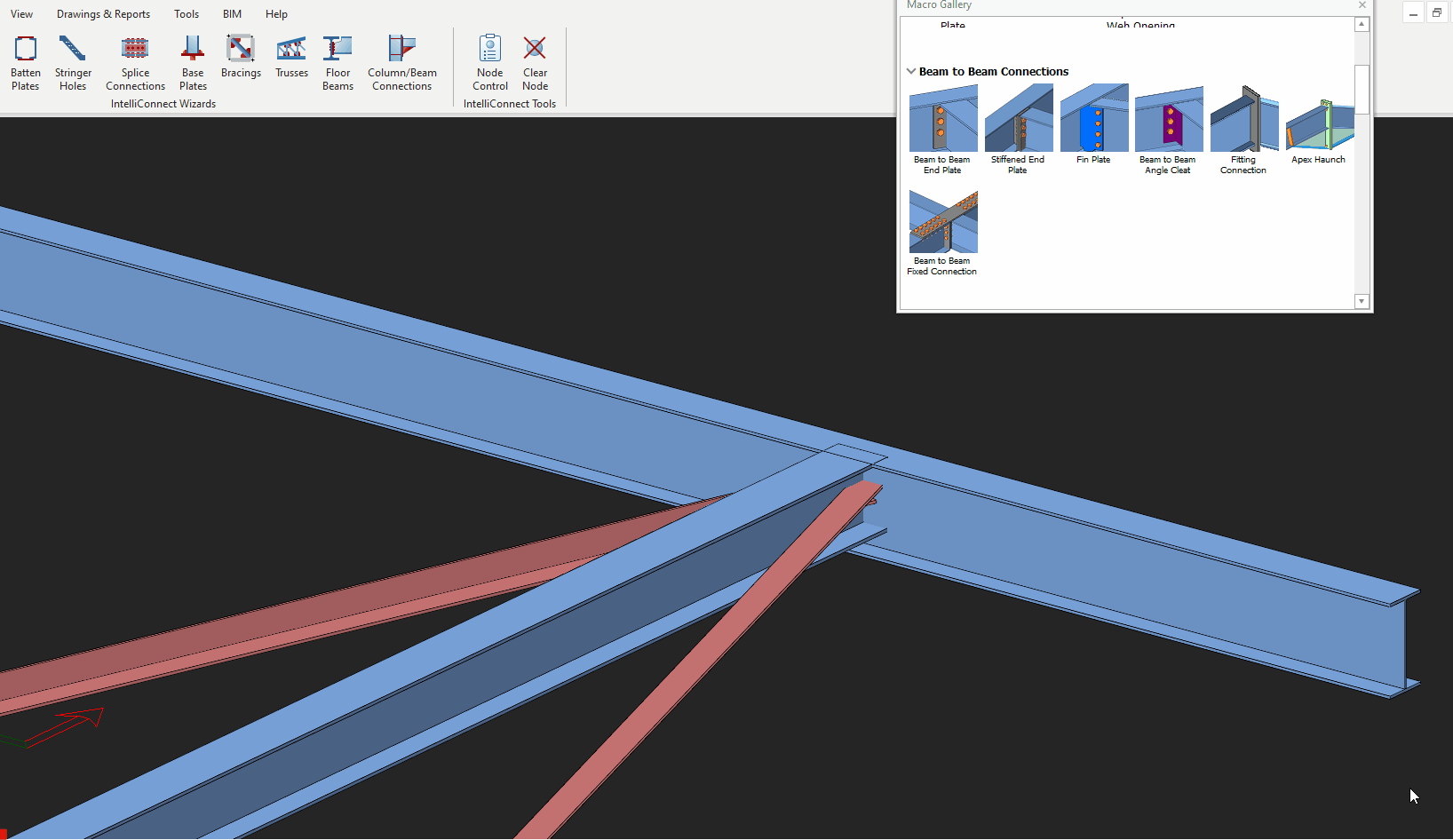

The GIF below is the example as described in ProtaSteel Basic Training Guide.
Fin Plate Connection Macro:

Fin Plate Connection Macro & Corner Bolted Gusset Plate Connection Macro:

Notes

  1. Create the most appropriate View first before creating the connection. The same view & orientation will be used to produce the drawings. Click this topic for more details: Creating Views
  2. Press F9 on the joint to set the point of interest. The view will then rotate about the point of interest.
